UVUS-S Split Ultrasonic Level MeterUVRH-31
Specifications
Range: 5m~30m
Accuracy: ±0.25%
Dead zone: ≤ 0.25m
Resolution: 1mm
Beam angle: 12°
Power: 12~24V DC/220V AC ,?1.5W
Output: 4~20mA, 0~20 mA, 0~5V, 0~10V, RS-485(Modbus), Relay
Process fitting: Thread of M60*2, Flange
Working pressure: 0~1.0MPa
Temperature compensation: -20~80?
Protection rating: IP67

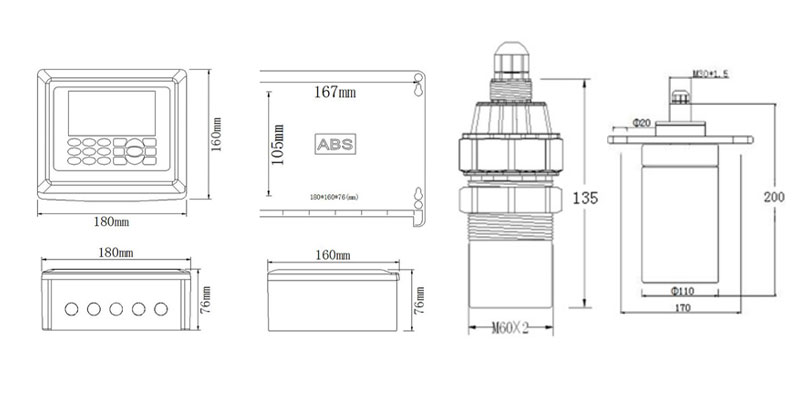

Size diagram
Overview of Split Ultrasonic Level Meter
The transducer in ultrasonic level meter sends out high frequency ultrasonic pulses. When a pulse hits liquid surface, it is reflected back. The reflected ultrasonic wave is received by the transducer and converted into an electronic signal. The time interval between transmitted ultrasonic pulse and received ultrasonic pulse is directly proportional to the distance between transducer and liquid surface.

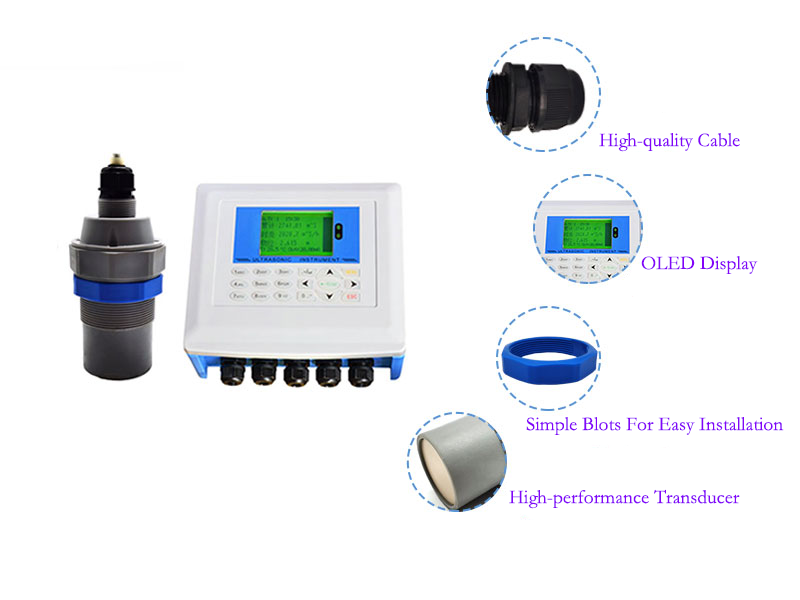

UVUS-S Split Ultrasonic Level Meter advantage
UVUS-S Split Ultrasonic Level Meter size
UVUS-S Split Ultrasonic Level Meter application case
